Steel Plate Heating Equipment

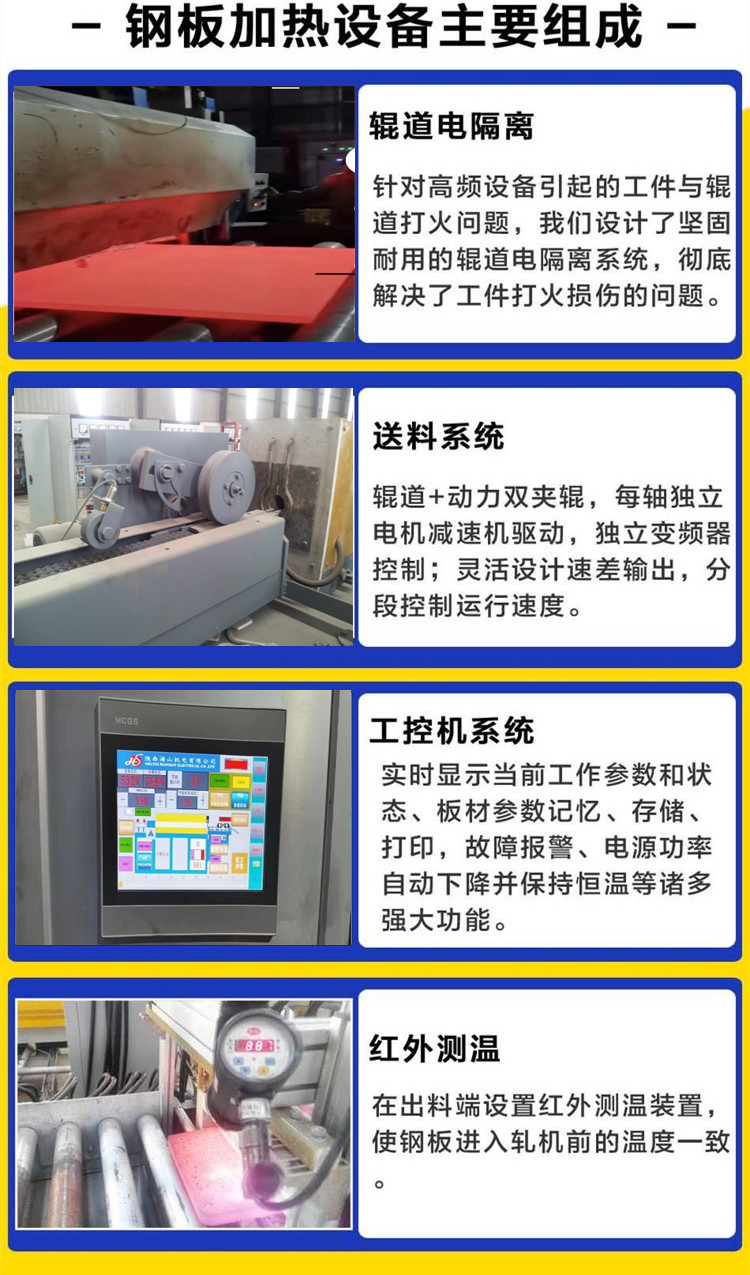

Steel Plate Heating Equipment is mainly used for heating, forging, surface heat treatment, or rolling of alloy steel plates, stainless steel plates, alloy aluminum plates, and copper plates. Equipped with automatic feeding, discharging, flat-type heating coils, and PLC control system, it can achieve the automation of metal sheet heating. Here, Haishan Electric Furnace editor will introduce this set of Steel Plate Heating Equipment.

I. Working principle of Steel Plate Heating Equipment:

Steel Plate Heating Equipment uses the principle of induction heating. Heating the metal sheet by electromagnetic induction principle belongs to non-contact induction heating equipment. Steel Plate Heating Equipment places the metal sheet workpiece into the induction coil, and the induction coil is a rectangular hollow copper tube input with intermediate frequency AC by the intermediate frequency power supply. When the AC in the induction coil passes through, it produces an alternating magnetic field, which generates an induction current of the same frequency in the metal sheet workpiece. The induction current of this Haishan electric furnace is unevenly distributed in the metal sheet workpiece with a strong surface and a weak interior. By using the skin effect, the surface of the workpiece can be quickly heated, and the surface temperature can rise to 800-1200℃ in a few seconds, achieving the heating of the metal sheet.

     II. Parameters of Steel Plate Heating Equipment:

1. Heating power: 600KW

2. Heating frequency: 1000Hz - 8000Hz

3. Plate size: Thickness: 13-28mm Width: 40-85mm Length: 5000mm

4. Production efficiency: ≤1.45t/h

5. Material of billet: Alloy steel

III. Features of Steel Plate Heating Equipment:

1. Steel Plate Heating Equipment can achieve full power output and has time control and split-type multi-models.

2. Steel Plate Heating Equipment is easy to operate, safe and reliable, eliminating the danger of high voltage.

3. Steel Plate Heating Equipment is easy to install, and can be used by simply connecting to the power supply and water, which can be completed in a few minutes.

4. Steel Plate Heating Equipment can be used continuously for 24 hours, is highly efficient and energy-saving, and can save two-thirds of the power compared to conventional electronic tube high frequency.

5. The automatic control type can adjust the power and time of the heating and insulation process, simplifying worker operation.

6. Steel Plate Heating Equipment has a fast heating speed, high efficiency, and uniform heating.
